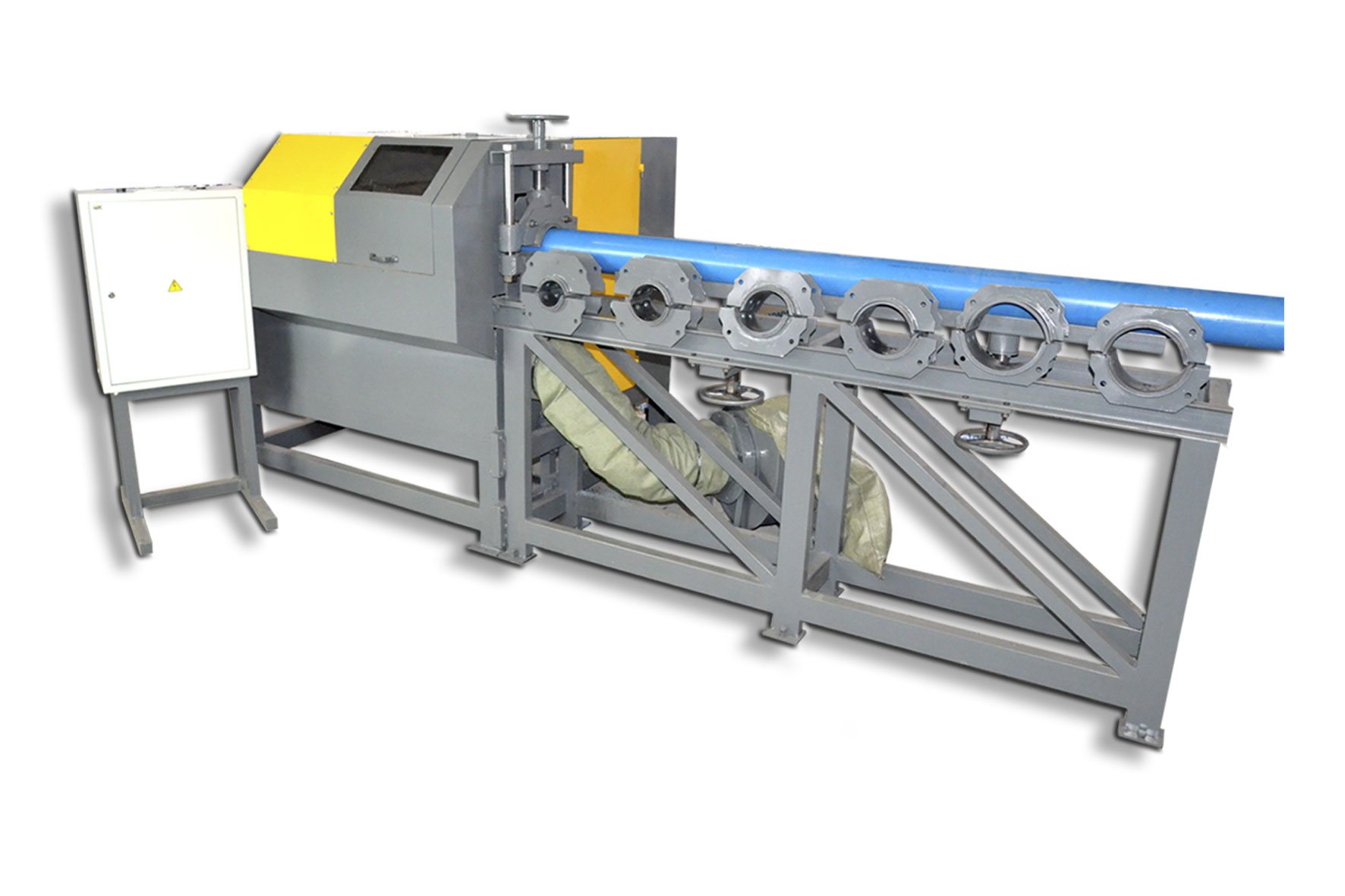

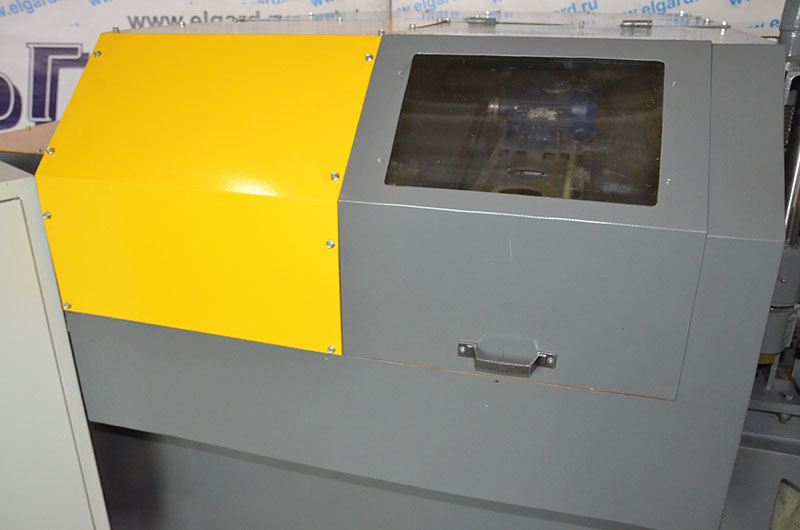

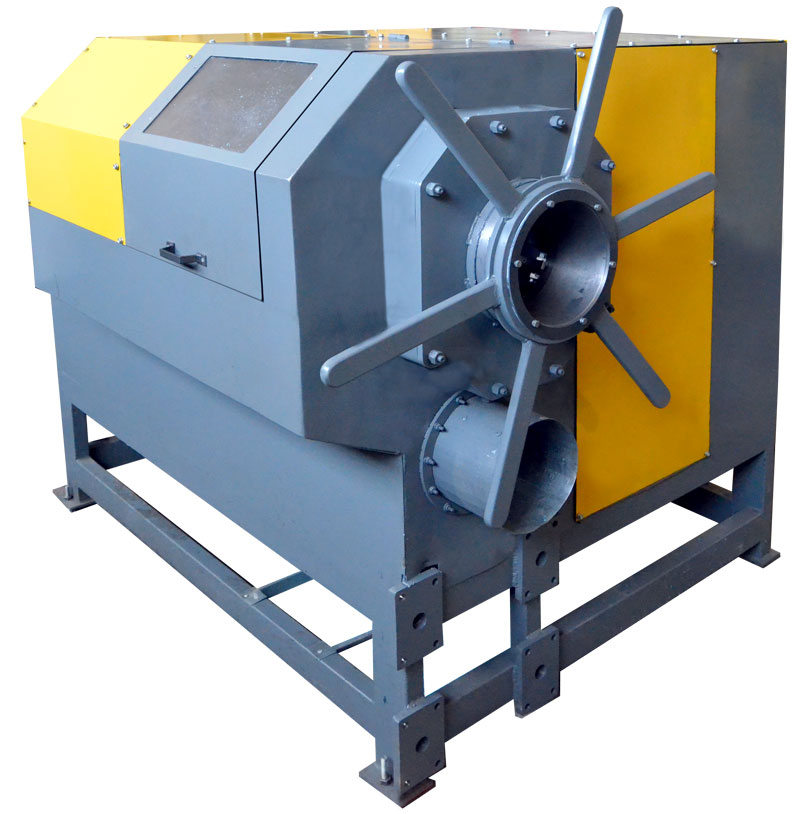

Thread tapping machine RNPT-180 for plastic pipes

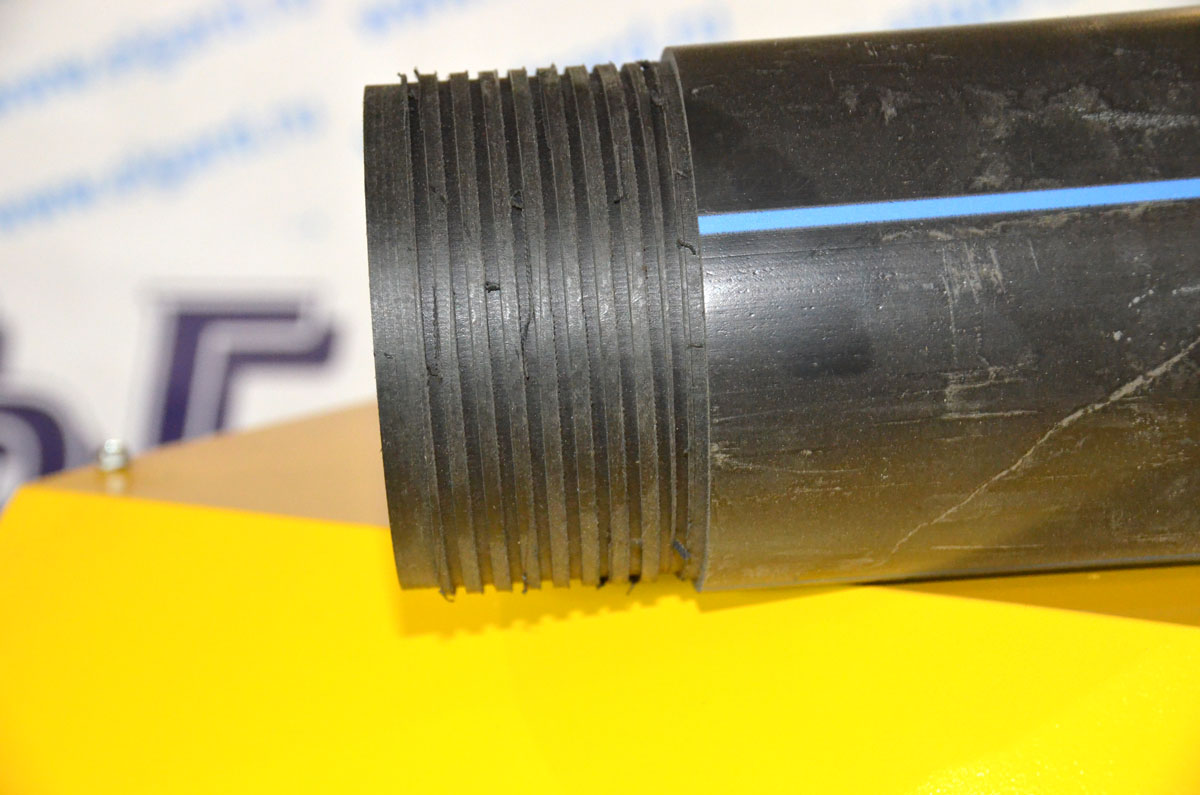

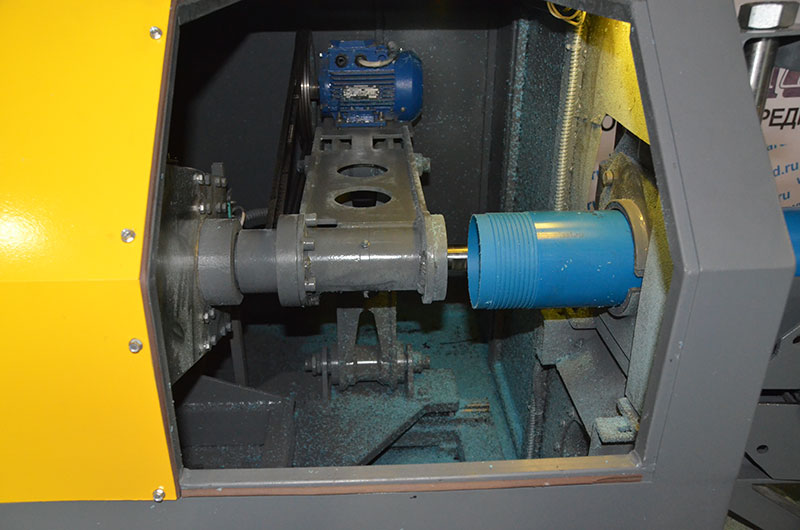

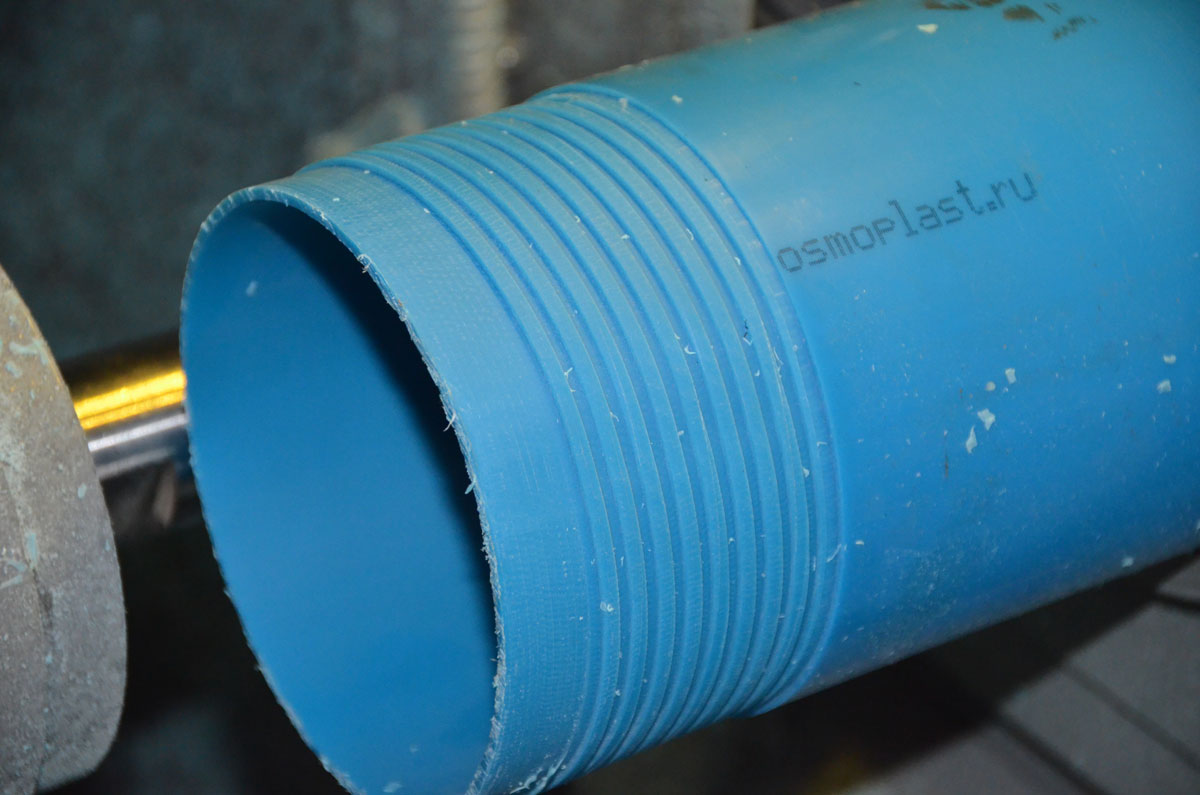

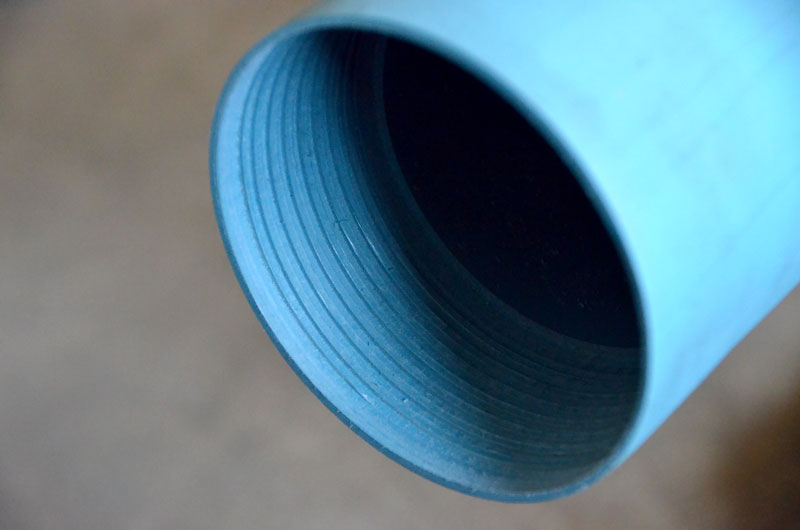

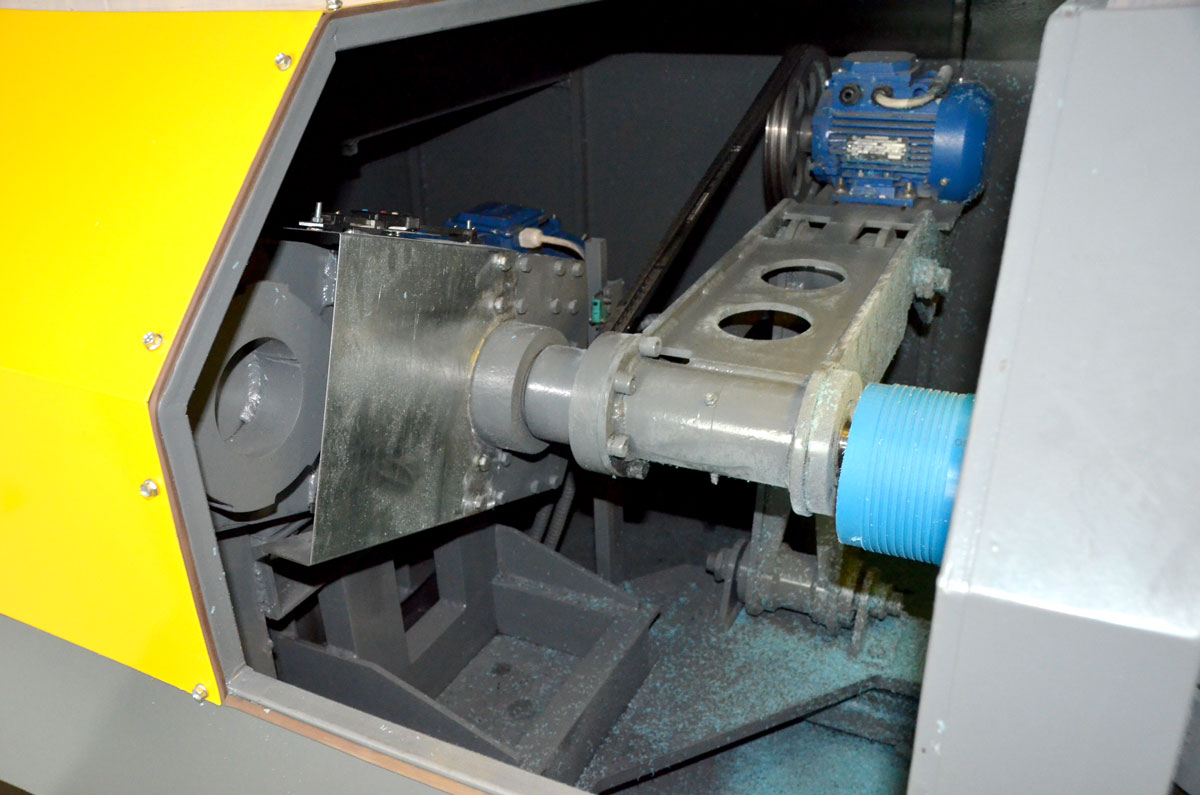

Programmable thread tapping machine RNPT-180 allows automatic cutting of both female and male thread on plastic casing pipes (LDPE, HDPE, PVC) of 90 to 180mm in diameter, with unrestricted pipe length.
Commercial offer
Cost:
From 11.200 USD
Brief description:

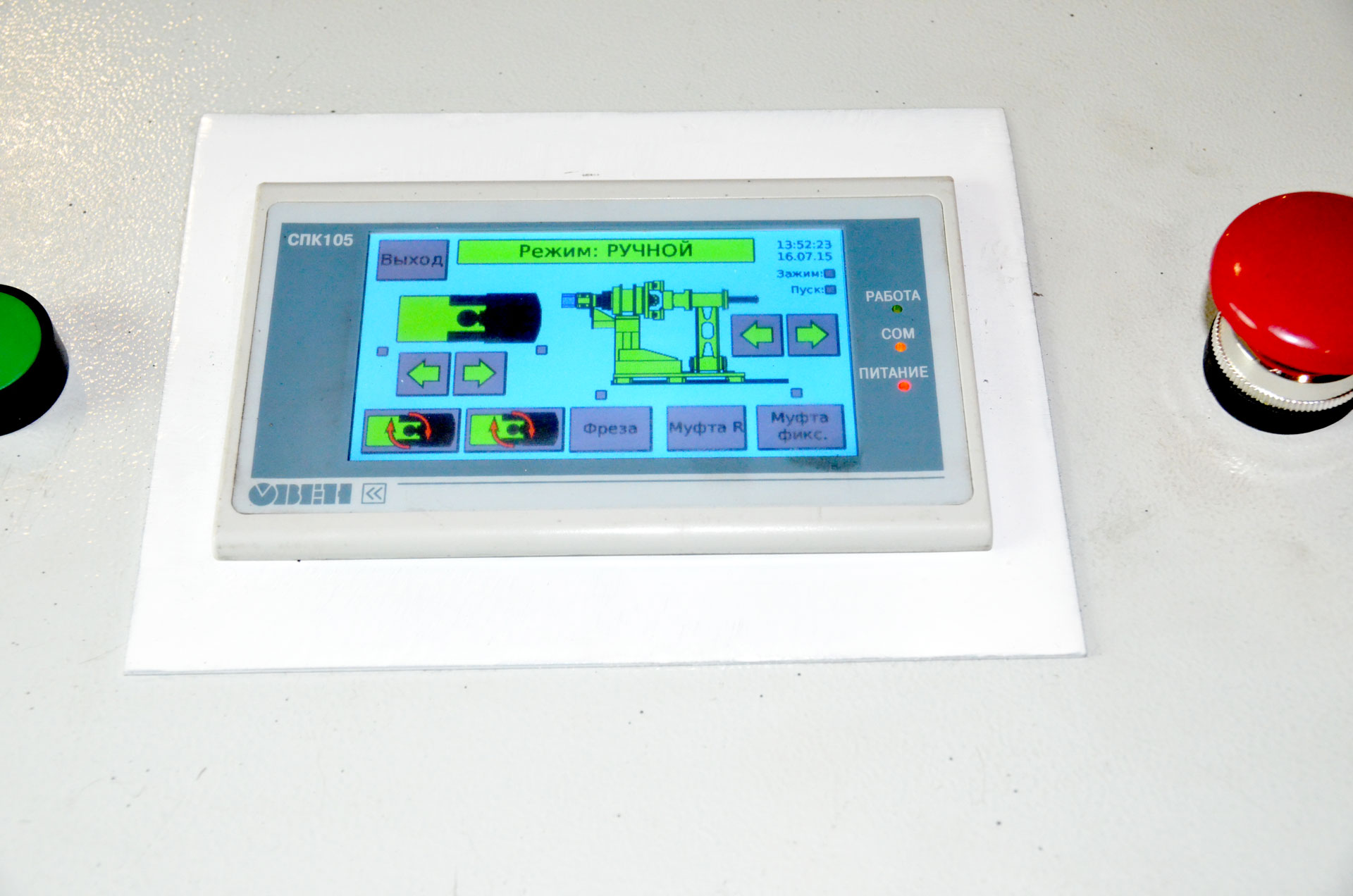

Mode: Auto
Power consumption: 3kW/380V
Capacity: 1 thread/120sec
Warranty: 1 year
Machine specification:
|
Diameters of machined plastic pipes: |
90, 110, 125, 132, 140, 160, 180 mm |
|
Maximum length of a plastic pipe: |
Unlimited |
|
Minimum length of a plastic pipe: |
200 mm |
|

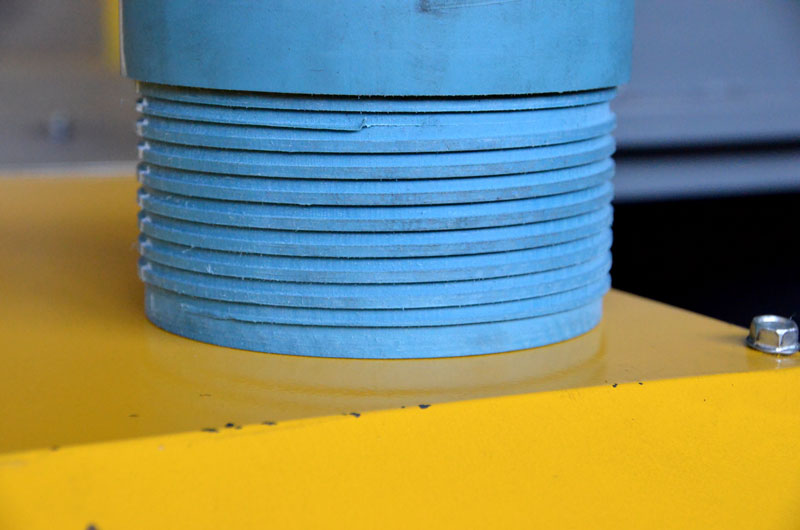

Thread type: |
Square, flat/straight |
|
Thread depth: |
2 мм by default |
|
Thread pitch: |
6 mm |
|
Workpiece diameter changeover: |
Automatic mode |
|
Rated time of full-cycle female threading |
120 sec |
|
Rated time of full-cycle male threading |
120 sec |
|
Power supply: |
380 V |
|
Output: |
3.0 kW |
|
Overall dimensions W х L х H |
1200*3600*1200 |
|
Operator: |
1 person |
|
Weight: |
2,200kg |
|
Diameters of machined plastic pipes: |
90, 110, 125, 132, 140, 160, 180 mm |
